Описание, детайли - UNI-T UT890D+ (MIE0428)
Ценова графика
Така ще разберете кога се променя цената на стоката.
Известие за цена
Услугата Известие за цена Ви уведомява, когато цената на стоката падне под избраната стойност.
Най-ниска актуална цена: 0,00 €
Описание

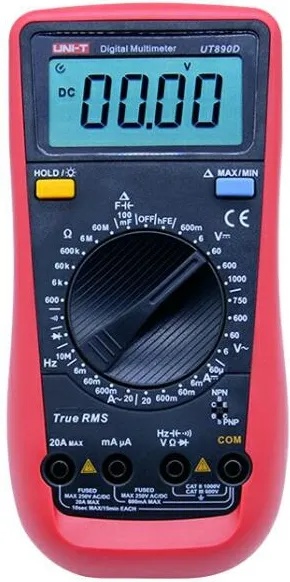

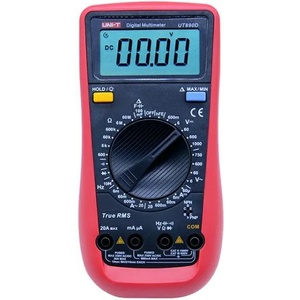

The UT890D+ 6000-count true RMS digital multimeters are designed with large LCD display.
The maximum measurable capacitance is 100mF, with fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890D+ has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with the automatic fuse blown detection and high voltage protection.
Applications:
1. Electrical switchboards 2. HVAC systems 3. Electrical circuit faults detection 4. Installation or maintenance of electronics/factory equipment 5. Electronics component development, circuit board design 6. Users who need to distinguish between neutral/live wire frequently
Specification Range UT890D+
DC Voltage 600mV/6V/60V/600V/1000V ±(0.5%+2)
AC Voltage 6V/60V/600V/750V ±(0.8%+3)
ACV Frequency 10Hz～10kHz ±（0.1%+5)
DC Current 60uA//600uA/6mA/60mA/600mA/20A ±(0.8%+8)
AC Current 60uA/600uA/6mA/60mA/600mA/20A ±(1%+12)
Resistance 600/6k/60k/600k/6M/60M ±(0.8%+3)
Capacitor 6.000nF/60.00nF/600.0nF/6.000μF/60.00
Продукт известен още и като UT 890 D MIE 0428, UT890DMIE0428, UT 890D+ (MIE0428), UT890D+ (MIE 0428)
The maximum measurable capacitance is 100mF, with fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890D+ has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with the automatic fuse blown detection and high voltage protection.
Applications:
1. Electrical switchboards 2. HVAC systems 3. Electrical circuit faults detection 4. Installation or maintenance of electronics/factory equipment 5. Electronics component development, circuit board design 6. Users who need to distinguish between neutral/live wire frequently
Specification Range UT890D+
DC Voltage 600mV/6V/60V/600V/1000V ±(0.5%+2)
AC Voltage 6V/60V/600V/750V ±(0.8%+3)
ACV Frequency 10Hz～10kHz ±（0.1%+5)
DC Current 60uA//600uA/6mA/60mA/600mA/20A ±(0.8%+8)
AC Current 60uA/600uA/6mA/60mA/600mA/20A ±(1%+12)
Resistance 600/6k/60k/600k/6M/60M ±(0.8%+3)
Capacitor 6.000nF/60.00nF/600.0nF/6.000μF/60.00
Продукт известен още и като UT 890 D MIE 0428, UT890DMIE0428, UT 890D+ (MIE0428), UT890D+ (MIE 0428)
