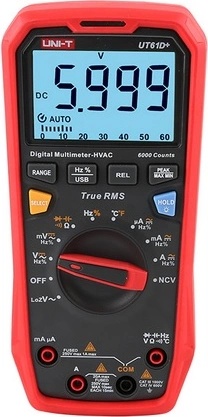

Features of UT61D+ 1000V True RMS Digital Multimeter

● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
pecifications Range UT61B+ UT61D+ UT61E+
AC voltage (V) 1000V ±(1%＋3) ±(1%＋3) ±(0.8%＋10)
DC voltage (V) 1000V ±(0.5%＋3) ±(0.5%＋3) ±(0.05%＋5)
AC current (A) 10A ±(1.2%＋5)
20A±(1.2%＋5) ±(0.8%＋10)
DC current (A) 10A ±(1%＋2)
20A±(1%＋2) ±(0.5%＋10)
Resistance () 60M ±(1%＋2) ±(1%＋2)
220M±(0.5%＋10)
Capacitance (F) 60mF ±(3%＋5) ±(3%＋5)
220mF±(3%＋5)
Frequency (Hz) 10MHz ±(0.1%＋4) ±(0.1%＋4)
220MHz±(0.01%＋5)
Duty cycle (%) 0.1%~99.9% ±(2%＋5) ±(2%＋5) ±(2%＋5)
Temperature (℃/℉)-40℃~1000℃±(1%＋3)
-40℉~1832℉±(1%＋6)
Display count6000 6000 22000
Bandwidth (Hz)40Hz~500Hz 40Hz~1kHz 40~10kHz
LPF ACV√
LoZ ACV√
ACV+DCV√
Transistor hFE√
Peak Hold√ √
Analog bar31 31 46
General Characteristics
Power 1.5V battery (R03) x 4
Product net weight 350g
Product size 190mm x 90mm x 50mm
Standard accessories Battery, gold plated test leads, USB cable, temperature probe (UT61D+),
multi-purpose socket (UT61E+), English manual
Standard individual packing Gift box, cloth bag
