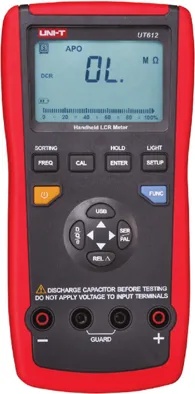

UNI-T Ut612 lcr метър
UNI-T Ut612 lcr метър
152,36 €
Оферти за UNI-T Ut612 lcr метър
Офертите за продукта
Описание, детайли - UNI-T Ut612 lcr метър
Описание
Specifications Range UT612
Inductance (H) 20uH~2000H ±(0.5%+5)
Capacitance (F) 200pF~20mF ±(0.5%+5)
Resistance () 20~200M ±(0.3%+5)
Test frequency (Hz) 100Hz/120Hz/1kHz/10kHz/100kHz √
Operating voltage 0.6Vrms √
Test parameters L/C/R/DCR/Q/D/θ/ESR √
Features
Display count20000
D/Q display count2000
D/Q resolution 0.001 √
Auto range√
Test frequency real-time display√
Measurement mode Series/Parallel √
Auto power off√
Low battery indication ≤6.8V √
Data hold√
Relative mode√
USB interface√
USB interface/PC data records60000
LCD backlight√
Analog bar graph26
Deviation ratio measurement√
Comparison function√
Calibration function√
Output impedance 120 √
Auto LCR check and measurement√
General Characterisitics
Power 9V battery (6F22) or USB
Display 40mm x 63mm
Product color Red and grey
Product net weight 374g
Product size 96mm x 193mm x 47mm
Standard accessories Battery, SMD test clamp, USB interface cable, multi-purpose socket, PC software CD
Standard individual packing Gift box, English manual
Inductance (H) 20uH~2000H ±(0.5%+5)
Capacitance (F) 200pF~20mF ±(0.5%+5)
Resistance () 20~200M ±(0.3%+5)
Test frequency (Hz) 100Hz/120Hz/1kHz/10kHz/100kHz √
Operating voltage 0.6Vrms √
Test parameters L/C/R/DCR/Q/D/θ/ESR √
Features
Display count20000
D/Q display count2000
D/Q resolution 0.001 √
Auto range√
Test frequency real-time display√
Measurement mode Series/Parallel √
Auto power off√
Low battery indication ≤6.8V √
Data hold√
Relative mode√
USB interface√
USB interface/PC data records60000
LCD backlight√
Analog bar graph26
Deviation ratio measurement√
Comparison function√
Calibration function√
Output impedance 120 √
Auto LCR check and measurement√
General Characterisitics
Power 9V battery (6F22) or USB
Display 40mm x 63mm
Product color Red and grey
Product net weight 374g
Product size 96mm x 193mm x 47mm
Standard accessories Battery, SMD test clamp, USB interface cable, multi-purpose socket, PC software CD
Standard individual packing Gift box, English manual
