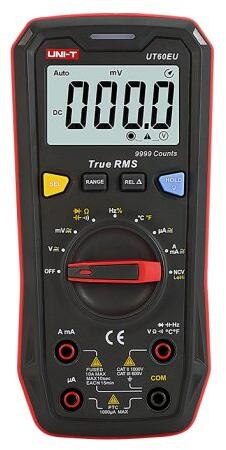

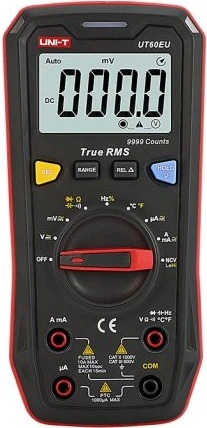

Features of UT60 Series Digital Multimeters

Certificates: CE, UKCA, cETLus

● 9999 counts
● True RMS
● Bluetooth
● Duty cycle
● Diode/Continuity test
● Temperature
● Non-contact voltage
● Analog bar/Data hold
● Backlight/Relative mode
● Auto/Manual range
● Low battery indication
● Three-color LED light indicator
Specification Range UT60EU UT60BT UT60S
DC Voltage 9.999mV/99.99mV/999.9mV/
9.999V/99.99V/999.9V ±(0.5%+3) ±(0.5%+3) ±(0.5%+3)
AC Voltage 9.999mV/99.99mV/999.9mV/
9.999V/99.99V/999.9V ±(0.8%+3) ±(0.8%+3) ±(0.8%+3)
DC Current 999.9uA/999.9mA/9.999A/10A ±(0.8%+3) ±(0.8%+3) ±(0.8%+3)
AC Current 999.9uA/999.9mA/9.999A/10A ±(1.0%+3) ±(1.0%+3) ±(1.0%+3)
Resistance 999.9/9.999k/99.99k/999.9k/9.999M/99.99 M ±(0.8%+2) ±(0.8%+2) ±(0.8%+2)
Capacitor 9.999nF/99.99nF/999.9nF/9.999μF/99.99 F/999.9μF/9.999mF ±(4.0%+5) ±(4.0%+5) ±(4.0%+5)
Frequency 99.99Hz～9.999MHz ±(0.1%+5) ±(0.1%+5) ±(0.1%+5)
Duty Cycle 0.1～99.9% ±(3%+5) ±(3%+5) ±(3%+5)
Temperatue –40℃～1000℃/–40°F～1832°F ±4℃/±5℉ ±4℃/±5℉ ±4℃/±5℉
Features
Bluetooth√
Display Count9999 9999 9999
Auto Range√ √ √
REL√ √ √
NCV√ √ √
Diode√ √ √
Continuity Test√ √ √
Acousto-optic Indication (NCV/continuity/battery power)√ √ √
Low Battery Indication ≤3.6V √ √ √
Data Hold√ √ √
Auto Power Off 15Min √ √ √
Operation Temperature 0℃～40℃
Safety CAT II 1000V/CAT III 600V
General Characteristics
Battery 1.5V AAA x 3
Product Color Red and Gray
Product Net Weight 290g
Product Size 169mm x 81mm x 46mm
Standard Individual Packing Gift Box, Manual, Thermocouple
