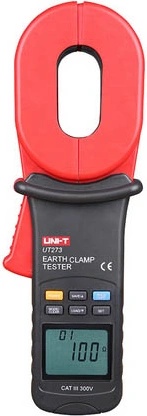

UT273 can quickly and safely measure the grounding system without disconnecting circuit ground lines or the need of auxiliary electrodes. It can measure resistance from 0.01 with a resolution of 0.001. Its double insulationdesign makes it a durable tool for outdoor work and is effective in blocking interference signals from the environment.
Type 　 UT273
Спецификации Обхват Точност
Earth Ground Resistance () 0.01~0.099 ±(1%+0.01)
0.1~0.99 ±(1%+0.01)
1.0~49.9 ±(1.5%+0.1)
50.0~99.5 ±(2%+0.5)
100~199 ±(3%+1)
200~395 ±(10%+5)
400~590 ±(20%+10)
600~1000 ±(25%+20)
Свойства
Maximum Display9999
Auto Range√
Jaw Capacity28mm
Auto Power Off√
Low Battery Indication ≤5.2V √
Data Hold√
Data Storage30
Data Recall√
LCD Backlight√
Auto Calibration√
Resistance Limit Alarm√
Основни характеристики
Power 1.5V Battery (5#) x4
LCD Size 47mm X 28.5mm
Product Color Red and Grey
Product Weight 1320g
Product Size 293mm X 90mm X 66 mm
Standard Accessories Batteries, Test Ring, Tool Box
Standard Individual Packing Gift Box, User Manual
