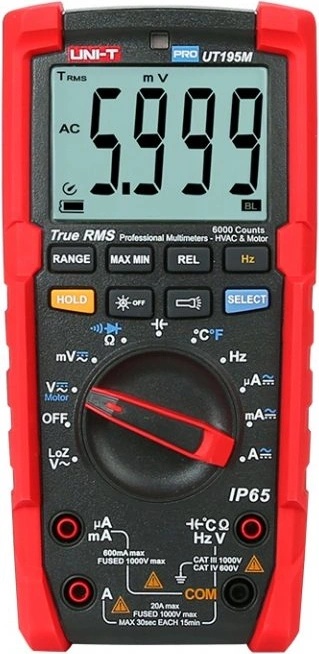

UT195 series are handheld industrial digital multimeters with IP65 and 2m drop proof. It can be applied in mines, oilfields and other harsh environments. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. It is exquisitely designed and easy to operate.

Спецификации Обхват UT195M
DC voltage (V) 1000V ±(0.5%+3)
AC voltage (V) 1000V ±(1.0%+3)
LoZ ACV 600V ±(2%+3)
DC current (A) 20A ±(0.8%+3)
AC current (A) 20A ±(1%+3)
Resistance () 60M ±(0.8%+2)
Capacitance 60mF ±(3%+5)
Frequency 60Hz~40MHz ±(0.1%+4)
Duty cycle 0.1%~99.9% N/A
Temperature (°C) -40°C~1000°C ±(1.5%+4)
Temperature (°F) -40°F~1832°F ±(2%+5)
Features
Display count6000
Display interface (LCD)Single
Measurement sampling rate times/s 3
True RMS√
AC voltage frequency response45~1kHz
AC current frequency response45~1kHz
3-phase motor sequence test 600V √
Diode/Continuity test3V
Auto/Manual range √
Continuity buzzer √
Low battery indication √
Data hold/Auto power off √
MAX/MIN √
Function selection √
Flashlight/Auto backlight √
General Characteristics
Power 9V battery
LCD size 66mm x 51mm
Product color Red
Product net weight 437g
Product size 195mm x 95 mm x 58mm
Standard accessories Test probes, battery, carrying bag, point contact temperature probe
