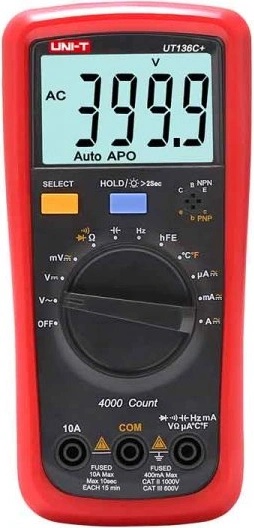

The new generation of UT136+ series digital multimeter has an innovative industrial design which ensures that the product can withstand a drop of 2 meters height. Large LCD screen provides a clear display and its 4 times/second sampling rate provides users with more accurate readings. UT136+ series is designed to work safely in CAT II1000V/CAT III 600V environment.

1. Measures up to 1000V and 10A AC/DC voltage and current
2. Equipped with 3mm protective sleeve; 2 meters drop proof
3. Large LCD display; Overload alarm
4. Quick sampling rate, up to 4 times/s
5. Quick capacitor measurement (measures 1mF in 4 seconds)
6. Low power consumption and auto power saving function; long battery service life (>500hrs)
Specifications Range UT136C+
DC voltage (V) 1000V ±(0.7%+3)
AC voltage (V) 1000V ±(1%+3)
DC current (A) 10A ±(1%+3)
AC current (A) 10A ±(1.2%+5)
Resistance () 40M ±(0.8%+2)
Capacitance (F) 40mF ±(3%+5)
Frequency (Hz) 400Hz~40mHz ±(0.1%+4)
Temperature (°C) -40~1000℃ ±(1%+4)
Temperature (℉) -40~1832℉ ±(1.5%+5)
Features
Display count4000
hFE Transistor measurement √
Diode/transistor√
Continuity buzzer√
Data hold/Auto power off√
Low battery/Indication√
LCD backlight√
Safety rating CAT Ⅱ 1000V, CAT Ⅲ 600V √
Drop test 2m √
General Characteristics
Power 1.5V battery (R6) x 2
Display 56.5mm x 36mm
Product color Red and grey
Product net weight 330g
Product size 175mm x 83mm x 53mm
Standard accessories Batteries, test leads, temperature probe
Standard individual packing Gift Box, English manual
