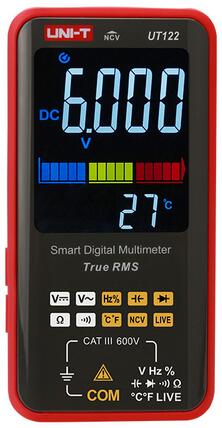

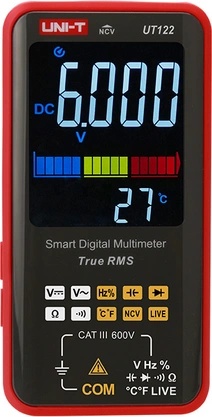

UT121 Series Smart Digital Multimeters

UT121 series feature large-screen & ultra-thin multimeters and auto range and they can display two measurement results at the same time, which is convenient for home and non-professional users. They are convenient and fast electronic tools.

Features

● True RMS

● AC/DC 600V voltage measurement

● 60M large resistance measurement

● 99mF large capacitance measurement

● Built-in rechargeable lithium battery, Type-C charging

● Temperature measurement

● Full-scale input protection

● NCV/LIVE measurement

● Large size LCD screen

● 19mm ultra-thin body

● 6000counts

● Intelligent identification gear
Specifications Range UT122
AC voltage (V) 6.000V/60.00V/600.0V ±(1.0%+3)
AC voltage frequency (Hz) 10Hz-1kHz ±(0.5%+2)
DC voltage (V) 6.000V/60.00V/600.0V ±(0.5%+3)
Resistance () 600.0/6.000K/60.00K/600.0K/6.000M/60.00 M ±(2.0%+5)
Capacitance (F) 99.99nF/999.9nF～9.999μF/9.999mF～99 . 99mF 10%
Frequency (Hz) 10.00Hz-10.00MHz ±(0.1%+3)
Temperature(℃/℉) –40℃～1000℃/–40°F～1832°F ±3℃/±6℉
Features
Display count6199
Dual display√
Auto range√
NCV detection√
LIVE detection√
Diode test√
Continuity buzzer√
LCD high voltage alert√
Flashlight√
Low battery indication√
Auto power off√
Data hold√
Category ratingsCATⅢ 600V
General Characteristics
Standard accessories UT121A: Batteries, test leads, English manual; UT121B/UT122: Batteries, test leads, temperature probe, English manual
Power 2*1.5V AAA
Display UT121A/UT122B: 52*66mm; UT122: 65*55mm
Product size UT121A/UT122B: 143*74*17mm; UT122: 144*71*15.5mm
Product net weight UT121A/UT122B: 142g; UT122: 157g
Standard individual packing Gift box, carrying bag
