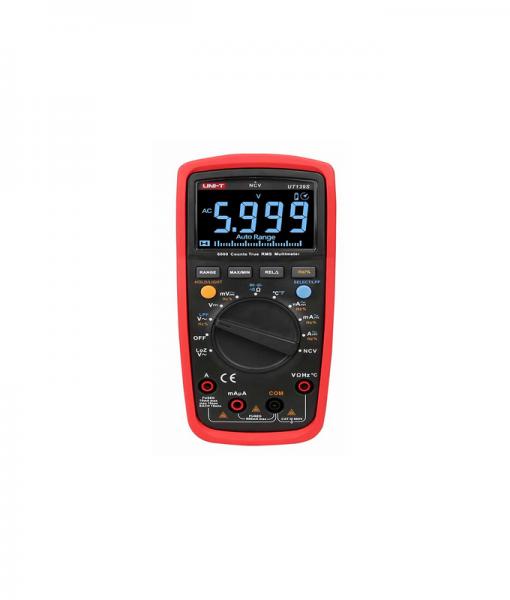

UNI-T Мултимер UT139S True RMS Digital
UNI-T Мултимер UT139S True RMS Digital
59,00 €
Оферти за UNI-T Мултимер UT139S True RMS Digital
Офертите за продукта
Описание, детайли - UNI-T Мултимер UT139S True RMS Digital
Описание
Functions Range Basic Accuracy
UT139S DC voltage (V) 60mV/600mV /6V/60V/600V ±(0.5%＋2)
AC voltage (V) 60mV/600mV/6V/60V/600V ±(0.8%+3)
DC current (A) 600μA/6000μA/60mA/600mA/6A/10A ±(0.7 %+2)
AC current (A) 600μA/6000μA/60mA/600mA/6A/10A ±(1.0 %+3)
Resistance () 600/6k/60k/600k/6M/60M ±(0.8%+2)
Capacitance (F) 9.999nF/99.99nF/999.9nF/9.999μF/99.99 F/999.9μF/9.999mF/99.99mF ±(4%+5)
Frequency (Hz) 10Hz~10MHz ±(0.1%+4)
Temperature(℃) -40～1000℃ ±(1.0%+4)
Temperature(℉) -40～1832℉ ±(1.5％+5)
Features
Safety ratingCAT III 600V
True RMS√
LCD displayEBTN
Display count6000
LPF (ACV)√
LoZ (ACV)√
Diode√
Continuity buzzer √
Duty cycle√
NCV√
Sampling rate3 times/s
Analog bar graph 31 segments
Range selection √
Max/Min√
Relative mode√
Drop proof1m
General Characteristics
Product colorRed and grey
Product net weight 345g
Product size170×80×48mm
UT139S DC voltage (V) 60mV/600mV /6V/60V/600V ±(0.5%＋2)
AC voltage (V) 60mV/600mV/6V/60V/600V ±(0.8%+3)
DC current (A) 600μA/6000μA/60mA/600mA/6A/10A ±(0.7 %+2)
AC current (A) 600μA/6000μA/60mA/600mA/6A/10A ±(1.0 %+3)
Resistance () 600/6k/60k/600k/6M/60M ±(0.8%+2)
Capacitance (F) 9.999nF/99.99nF/999.9nF/9.999μF/99.99 F/999.9μF/9.999mF/99.99mF ±(4%+5)
Frequency (Hz) 10Hz~10MHz ±(0.1%+4)
Temperature(℃) -40～1000℃ ±(1.0%+4)
Temperature(℉) -40～1832℉ ±(1.5％+5)
Features
Safety ratingCAT III 600V
True RMS√
LCD displayEBTN
Display count6000
LPF (ACV)√
LoZ (ACV)√
Diode√
Continuity buzzer √
Duty cycle√
NCV√
Sampling rate3 times/s
Analog bar graph 31 segments
Range selection √
Max/Min√
Relative mode√
Drop proof1m
General Characteristics
Product colorRed and grey
Product net weight 345g
Product size170×80×48mm
