UT210D

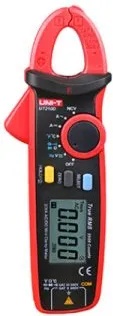

UNI-T’s UT210D is a mini 200A True RMS auto range digital clamp meter with 2000 display count. It is a portable and multifunctional device.

Features

1. NCV

2. Ergonomic and lightweight

3. Auto range, 2~3/s sampling rate

4. True RMS

5. ZERO mode

6. LCD backlight, data hold；

7. Auto power off, low battery indication

Specifications Range Best Accuracy
ModelUT210D
AC Current (A) 20A/200A ±(2.5%+8)
DC Current (A) 20A/200A ±(2%+3)
AC Voltage (V) 2V/20V/200V/600V ±(1%+3)
DC Voltage (V) 200mV/2V/20V/200V/600V ±(0.7%+3)
Resistance () 200/2k/20k/200k/2M/20M ±(1%+2)
Frequency 10Hz/100Hz/1kHz/10kHz/60kHz ±(0.1%+4)
Capacitance(F) 2nF/20nF/200nF/2μF/20μF/200μF/2mF/20 mF ±(4%+5)
Temperature (℃) -40~1000℃ ±(1%+3)
Temperature (℉) -40~1832℉ ±(1.5%+5)
Features
Display Count2000
Auto Range√
Jaw Capacity17mm
True RMS√
Diode Around 3.0V √
NCV√
Auto Power Off Around 15 minutes √
ContinuityBuzzer√
Low Battery Indication ≤2.5V √
Data Hold√
Zero Mode√
MAX/MIN√
LCD Backlight√
Input Protection√
Input Impedance for DCV ≥10M √
General Characteristics
Power AAA 1.5V x 2
LCD Size 39.3mm x 26.5mm
Product Color Red and grey
Product Net Weight 170g
Product Size 175mm x 60mm x 33.5mm
Standard Accessories Batteries, Test Lead, Point Contact Temperature Probe
