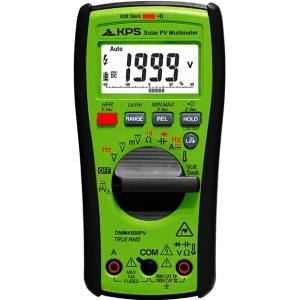

Bluetooth Digital Multimeter
Features
– Industrial, HVAC& Solar PV Application
– High-Frequency Rejection
– Loz for preventing false reading from ghost voltage
– Auto Volt for automatic AC/DC voltage selection
– Data Logging / Manual Save up to 4000 records
– Battery Capacity indication in segments

Function Range OL Reading Resolution Accuracy
DC mV 600.0mV 660.0mV 0.1mV ±(0.5% + 5D)
DC Voltage 6.000V 6.600V 0.001V ±(0.5% + 2D)
60.00V 66.00V 0.01V
600.0V 660.0V 0.1V
1000V 1100V 1V
AC Voltage 600.0V 660.0V 0.1mV ±(1.0% + 3D)
6.000V 6.600V 0.001V
60.00V 66.00V 0.01V
600.0V 660.0V 0.1V
1000V 1100V 1V
PV DC Voltage 600.0V 660.0V 0.1V ±(2.0% + 5D)
2000V 2200V 1V
PV AC Voltage 600.0V 660.0V 0.1V ±(2.0% + 5D)
1500V 1600V 1V
DC Current 6.000A 6.600A 0.001A ±(1.0% + 3D)
10.00A 20.00A 0.01A
AC Current 6.000A 6.600A 0.001A ±(1.5% + 3D)
10.00A 20.00A 0.01A
Resistance 600.0 660.0 0.1 ±(0.9% + 5D)
6.000 6.600 0.001k ±(0.9% + 2D)
60.00 66.00 0.00 ±(0.9% + 2D)
600.0 660.0 0.1k ±(0.9% + 2D)
6.000 6.600 0.001M ±(0.9% + 2D)
40.00M 44.00M 0.01M ±(1.5% + 5D)
Continuity 600.0 660.0 0.1 ±(0.9% + 5D)
Diode 1.500V 1.550V 0.001V ±(0.9% + 2D)
Capacitance 1.000μF 1.100μF 0.001μF ±(1.9% + 5D)
10.00μF 11.00μF 0.01μF ±(1.9% + 2D)
100.0μF 110.0μF 0.1μF
1.000mF 1.100mF 0.001mF
10.00mF 11.00mF 0.01mF
Frequency 100.00Hz 100.00Hz 0.01Hz ±(0.1% + 2D)
1000.0Hz 1000.0Hz 0.1Hz
10.000kHz 10.000kHz 0.001kHz
100.00kHz 100.00kHz 0.01kHz
Temperature -40.0°C – 400.0°C 440.0°C 0.1°C ±(1% + 20D)
-40.0°F – 752.0°F 824.0°F 0.1°F ±(1% + 36D)
